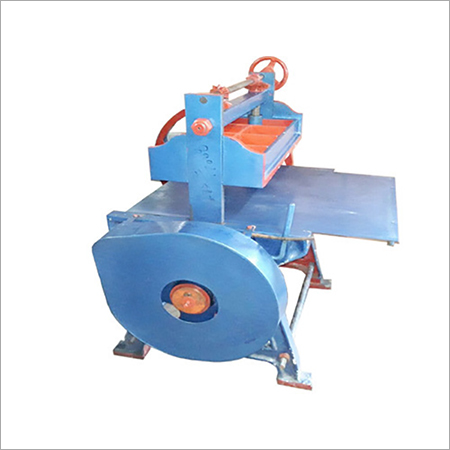

Envelope Paper Cutting Machine

Get a Price/Quote

MOQ : 1 Unit

Envelope Paper Cutting Machine Specification

Drive Motor
Induction Motor

Product Type
Industrial Cutting Equipment

General Use
Cutting paper sheets for envelope manufacturing

Material
Mild Steel Body and High-carbon Steel Blades

Type
Envelope Paper Cutting Machine

Capacity
5000-6000 sheets/hour

Weight (kg)
1200 kg

Computerized
No

Automatic
Semi-automatic

Cutting Speed
Up to 60 cycles/minute

Cutting Thickness
Up to 3 mm

Cutting Function
Straight and cross-cutting for envelope blanks

Cooling System
Air Cooling

Drive Type
Mechanical

Voltage
220V/380V, 50/60Hz

Dimension (L*W*H)
2200 mm x 1800 mm x 1350 mm

Feature
High precision, Robust construction, Easy operation

Color
Blue and White

Motor
3 HP Electric Motor

Mechanical Precision
0.2 mm

Cutting Method
Flatbed and Rotary Knife

Control System
Panel-controlled operation

Cutting Area
800 mm x 1100 mm

Cutting Material
Paper, Card stock

Envelope Paper Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash on Delivery (COD), Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Western Union, Paypal, Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
10 Units, , Per Week

Delivery Time
1 Week

Sample Available
Yes

Main Export Market(s)
South America, Western Europe, Eastern Europe, Middle East, Australia, Asia, Central America, North America, Africa

Main Domestic Market
All India

Certifications
ISO Certified

About Envelope Paper Cutting Machine

We are a well known company, engaged in manufacturing and supplying an efficient range of Envelope Paper Cutting Machine. This machine is made of high grade metal alloy that has paint coated surface finish. This clutch operated machine is suitable for automatic stop after each impression. It is most rigid machine to undertake full load. Offered machine is ideal for cutting envelope in attractive shape and design. Offered machine saves your time, effort and money as it has high production rate. It is tested on various quality parameters to ensure long functional life and excellent performance. This Envelope Paper Cutting Machine is known for corrosion and rust proof nature and has application specific design that makes it easy to operate.

Specification

Size Of Machine	Power Required	Gross Weight Approximate
19" x 33"	3 H.P.	1200 Kgs
24" x 36"	5 H.P.	1400 Kgs.

Superior Cutting Performance

Engineered for high productivity, this envelope paper cutting machine delivers impressive speeds of up to 60 cycles per minute. With a 1100 mm blade and a generous 800 mm x 1100 mm cutting area, it handles stacks up to 120 mm thick, ensuring efficient processing of large volumes for envelope manufacturing.

Enhanced Safety & Ease of Operation

Safety is paramount with integrated features such as a push-button interface, safety guard, emergency stop, and automatic lubrication. Manual blade adjustment ensures precise cuts, while the user-friendly controls and robust construction promote easy and safe operation, minimizing risks during use.

Durable and Reliable Construction

Built with a mild steel body and high-carbon steel blades, this machine promises longevity and consistent performance. The air-cooled induction motor and automatic oil bath lubrication system keep the machinery running smoothly, reducing maintenance and extending operational life.

FAQs of Envelope Paper Cutting Machine:

Q: How does the Envelope Paper Cutting Machine ensure high precision cutting?

A: The machine features a strong mechanical drive system and high-carbon steel blades, combined with manual blade adjustment, delivering a mechanical precision of 0.2 mm. Its robust construction allows for consistent, accurate cuts across various paper and card stock types.

Q: What safety measures are included with this machine?

A: This machine is equipped with multiple safety features: a safety shield, emergency stop switch, push-button interface with a safety guard, and an automatic oil bath lubrication system. These ensure safe handling during operation and minimize risk to operators.

Q: When is manual blade adjustment necessary, and how is it performed?

A: Manual blade adjustment is required when changing material thicknesses or seeking optimal cutting precision. Operators can safely set the blade position using the machines adjustment mechanism, typically before batch processing or when maintenance is performed.

Q: Where should the envelope paper cutting machine be installed for optimal performance?

A: The machine should be installed on a level floor with a reliable 3-phase power supply, as specified. Proper installation, including a wooden crate for packaging, ensures stability and safety during operation.

Q: What is the process for cutting envelope blanks using this machine?

A: Operators load stacks of paper onto the cutting area, select straight or cross-cutting functions, and activate the machine via the panel-controlled push-button. The machine then executes high-speed cycles, precisely cutting envelope blanks ready for subsequent manufacturing stages.

Q: How does the automatic lubrication system benefit machine operation?

A: The automatic oil bath lubrication system keeps moving components thoroughly lubricated, reducing friction and wear and thereby enhancing operational efficiency with minimal maintenance intervention.

Q: What are the main benefits of using this envelope cutting machine for manufacturers and suppliers?

A: Manufacturers benefit from high-speed, high-capacity operation (up to 6000 sheets/hour), precision cutting, robust durability, safe and easy operation, and reduced downtime due to automatic lubricationall essential for efficient envelope production.
